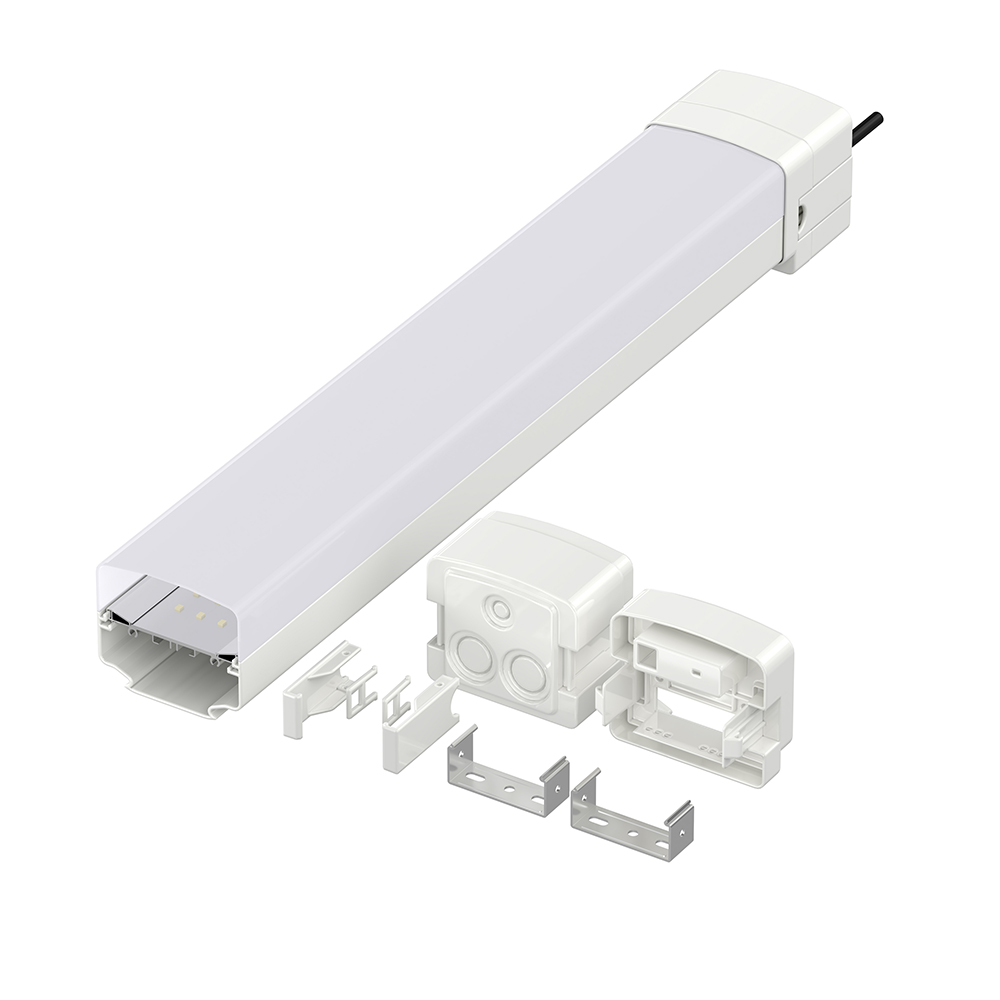

IP65 LED Tri-proof Housing
We’re one-stop manufacturer of LED Tri-proof Housing IP65 supplier in China over 10 years,provide different light design of the IP65 led light for our customer, no matter what’s your ideas for the light,we always offering different solutions for your options.
- Product description
- Video
- Specifications
- Application
- Related Products
Product Description:
1. High light transmittance: the transparency of the pure milky white cover can reach more than 85%, and the pure transparent cover can reach more than 95%.
2. High cold resistance: low temperature resistance -30 ℃, high temperature resistance 80-120 ℃.
3. Good flexibility: strong impact resistance, not easy to deform.
4. Perfect appearance: The product has high finish, no black spots, no stretch marks, no water waves, and the pass rate is over 95%.
| Product Name | IP65 LED Tri-proof Light Housing | |
| Model No. | LEZ-X29 | LEZ-X31 |

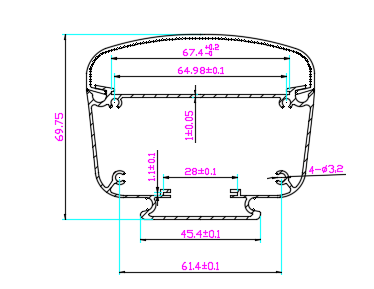

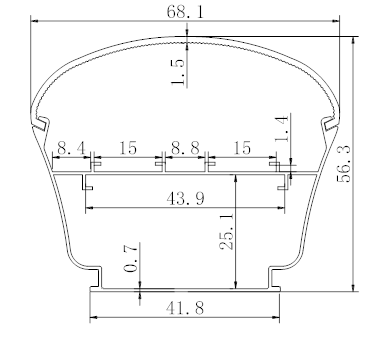

| Drawing |
|
 |

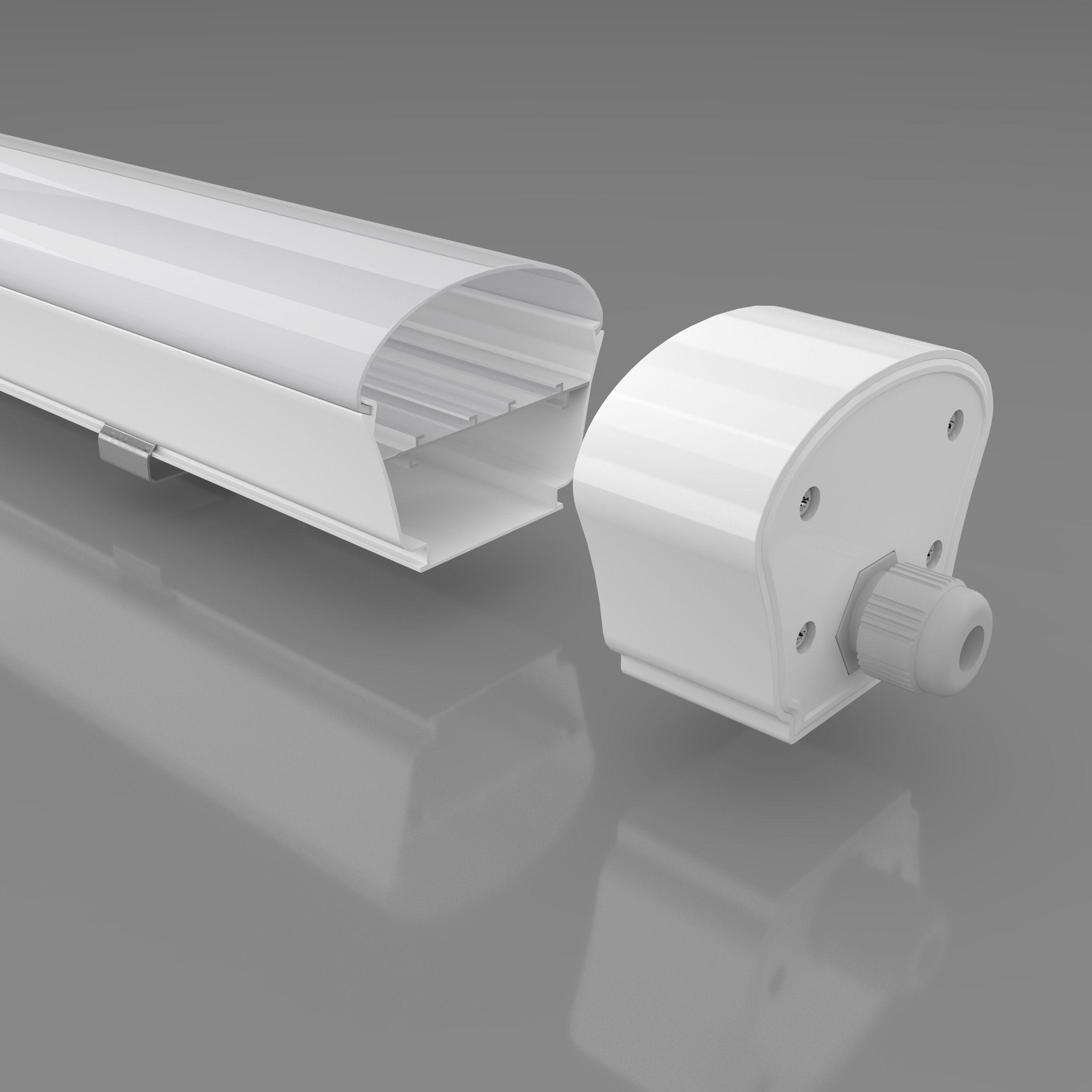

| Components | Full PC tube+End caps+Mounting clips | Diffuser cover+Aluminum housing+End caps+Clips |
| Model No. | LEZ-X15X | LEZ-X21 |

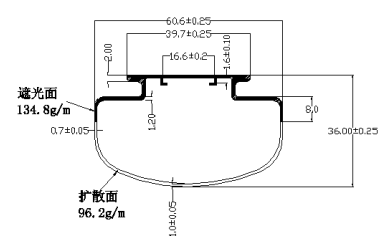

| Drawing |  |
 |

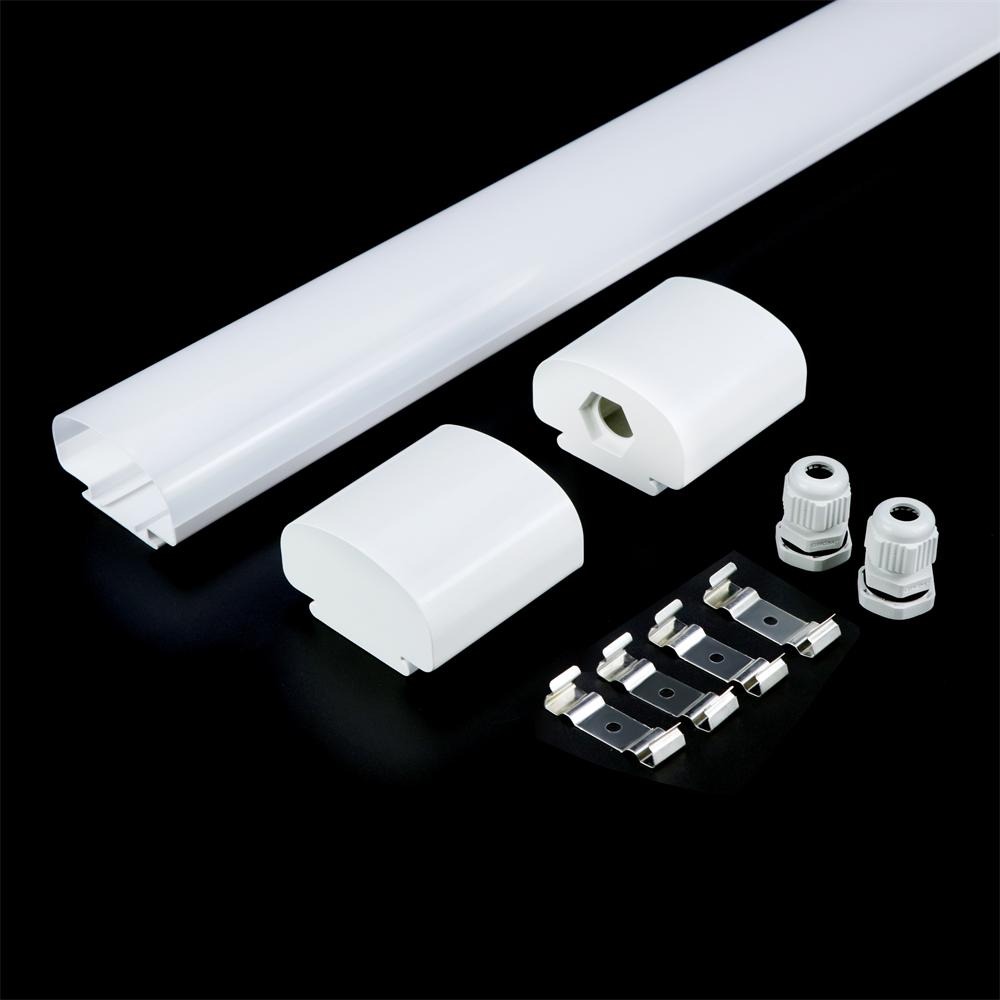

| Components | Full pc diffuser tubes+Two end caps | Diffuser tube+Aluminum heatsink+Two end caps |
| Length | 600mm, 900mm, 1200mm, 1500mm | |
| Materials | Polycarbonate+AL | Polycarbonate+AL |
| Diffuser color | Frosted or clear (transparent),co-extrusion | |
| Driver options | Internal | Internal |
| Delivery Time: | 7 days for mass production | 7 days for mass production |
| Package: | Standard carton or with pallet | |
| Sample Test | Q: Can I have a trial sample order?A: Yes, 1~2pcs | |
Application
Low power consumption; durable; using amorphous, odorless, non-toxic, highly transparent PC thermoplastic engineering plastics and good heatsink aluminum, which have excellent physical and mechanical properties, and can be used for a long time at low temperatures
