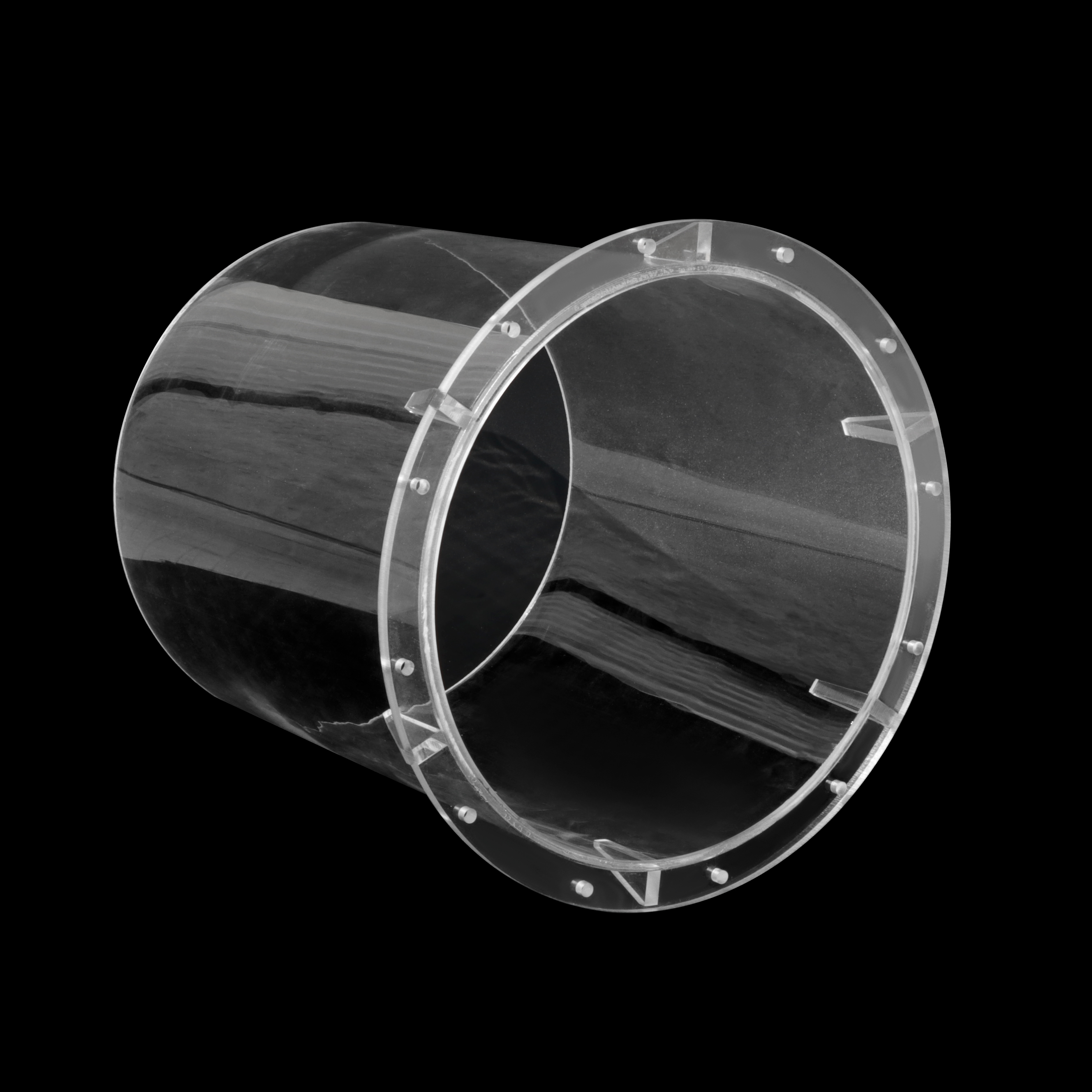

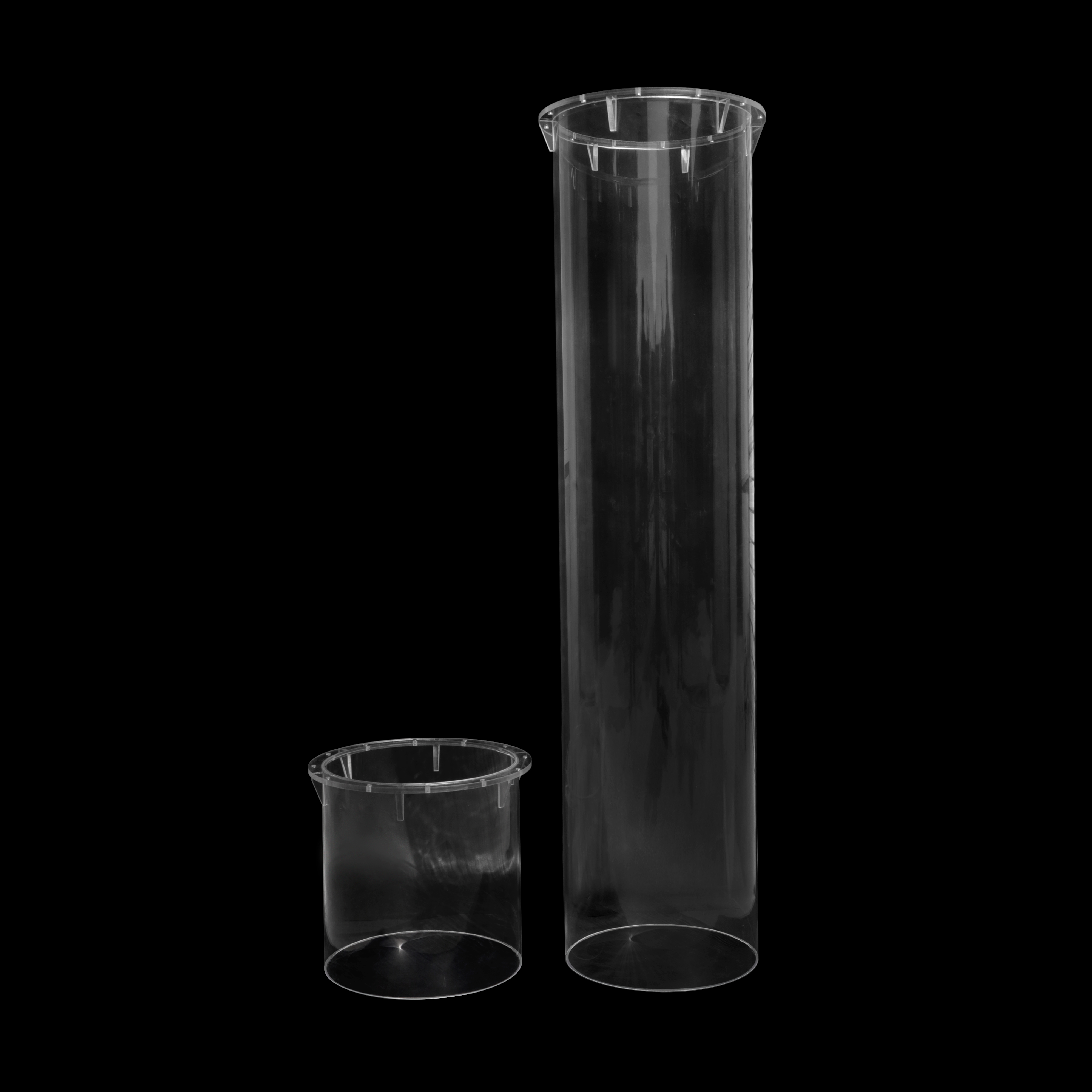

Algae cultivation acrylic tube

Algae cultivation acrylic tube is available in a range of diameters and wall thicknesses in clear finishes. which come with flanges and watertight are strong yet lightweight and suitable for the algae cultivation.

Product description
Video
Specifications
Application
Related Products

Product Description:

High impact resistance

Extruded acrylic tube has over ten times the impact strength of a glass equivalent. The hard wearing nature of the tube make it a popular choice for many applications.

Lightweight

Even thought acrylic tube is a strong and rigid material, it does so while remaining lightweight.

Weather resistant

Extruded acrylic tube achieves high resistance to the elements making it suitable for both indoor and outdoor applications.

Transparent / clear

The crystal clear acrylic walls of the tube allow high light transmission and optical clarity.

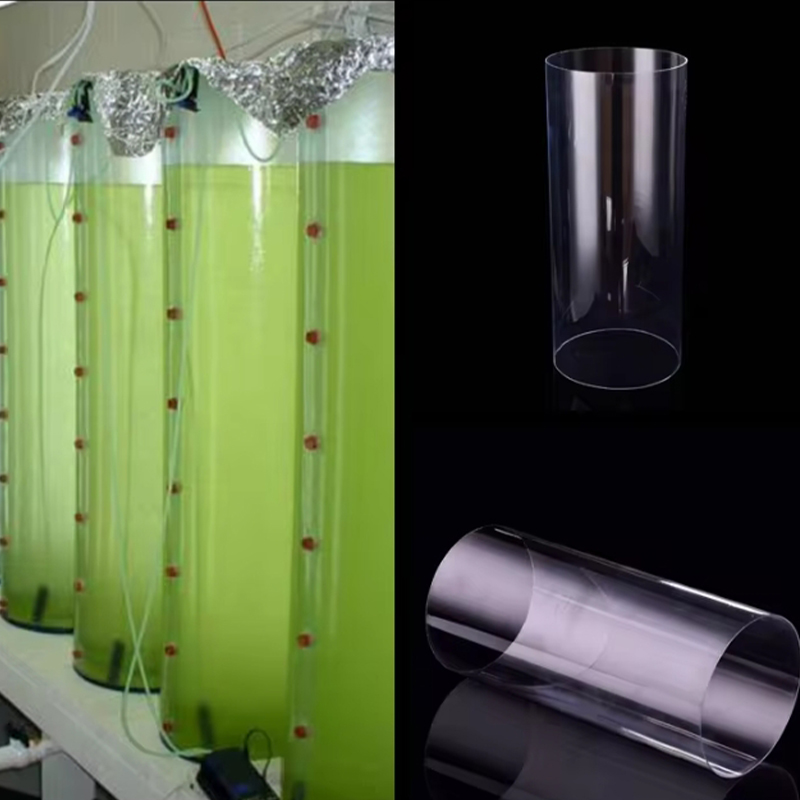

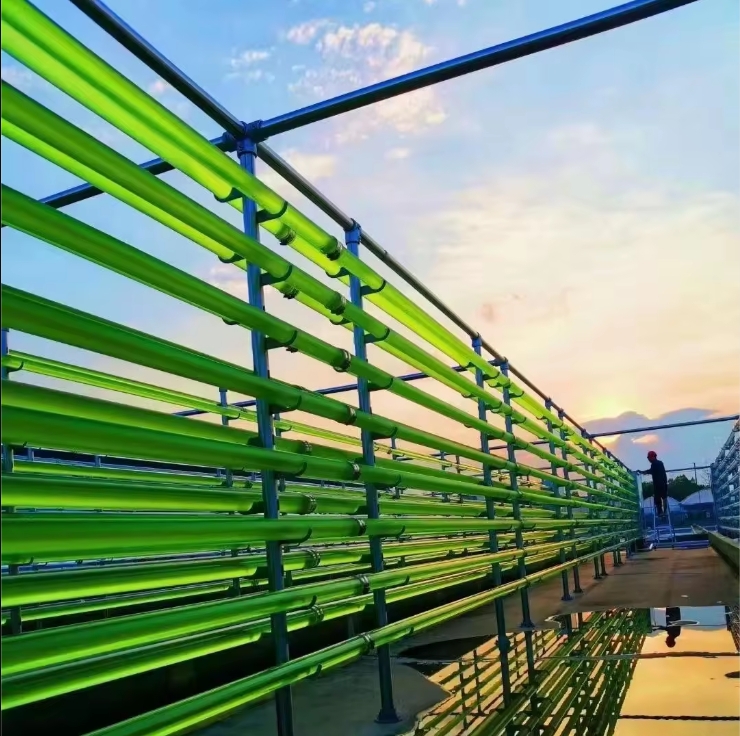

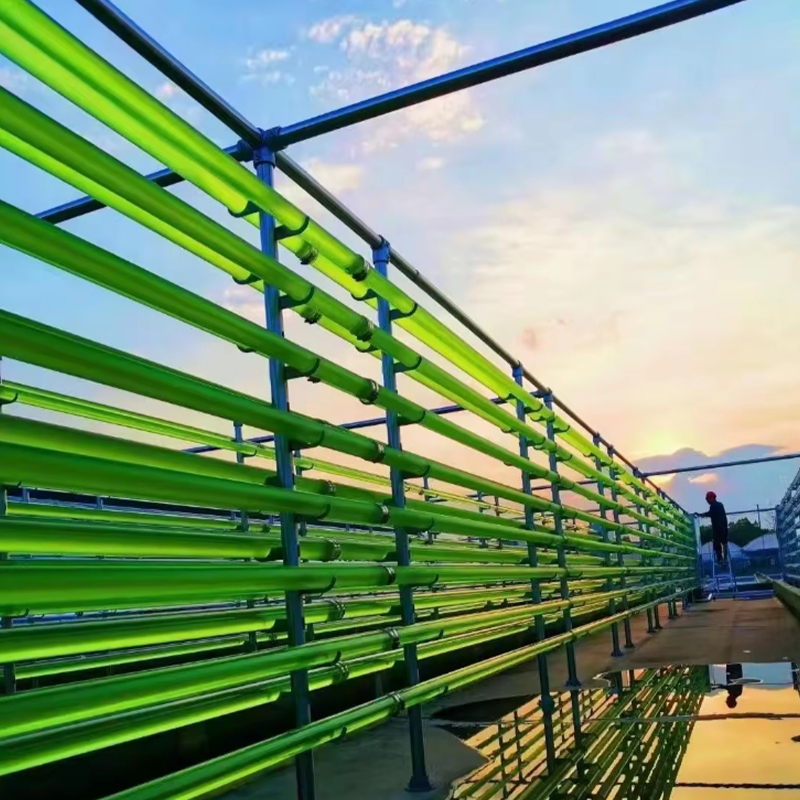

Plastic acrylic tubes as photobioreactor offer the best conditions for algae cultivation

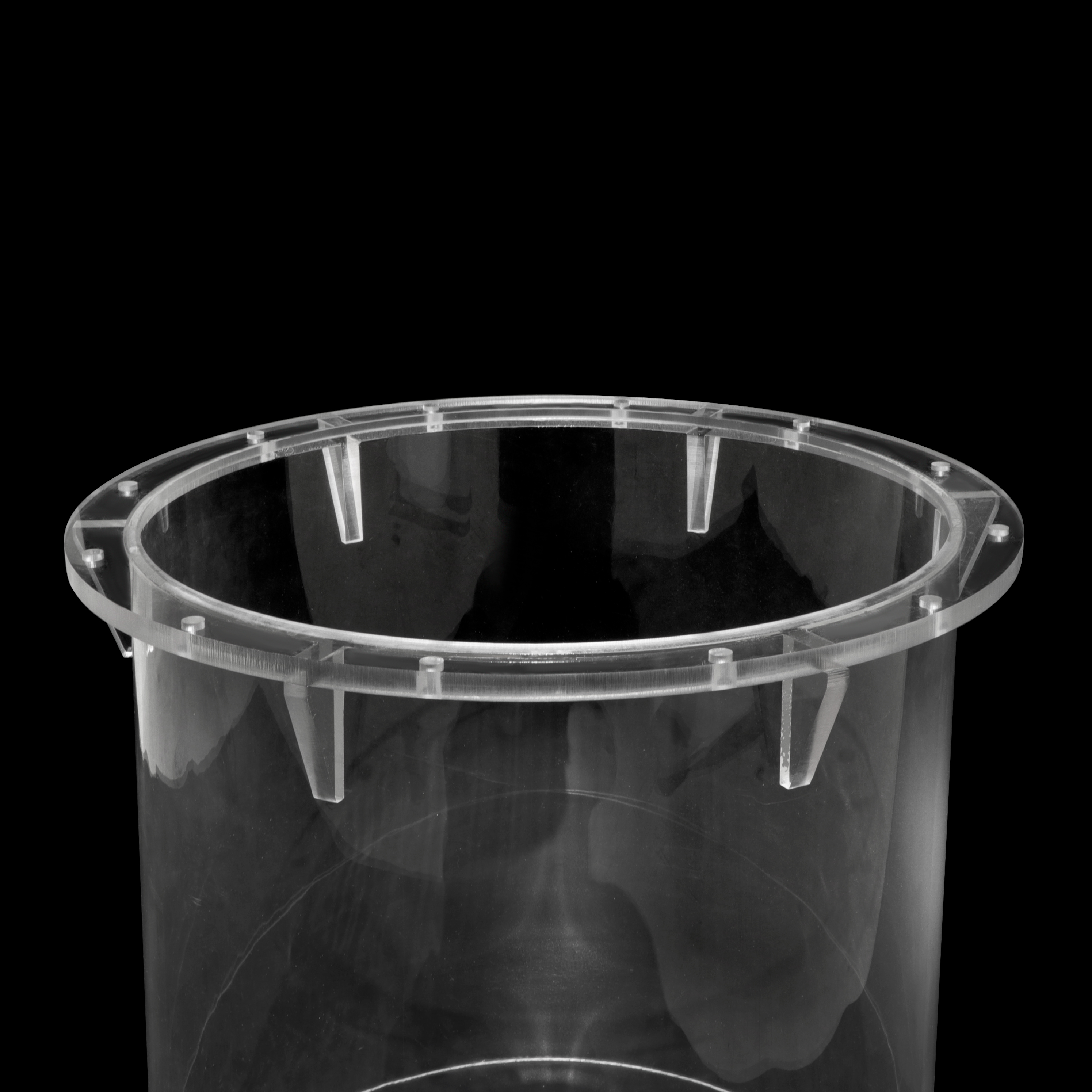

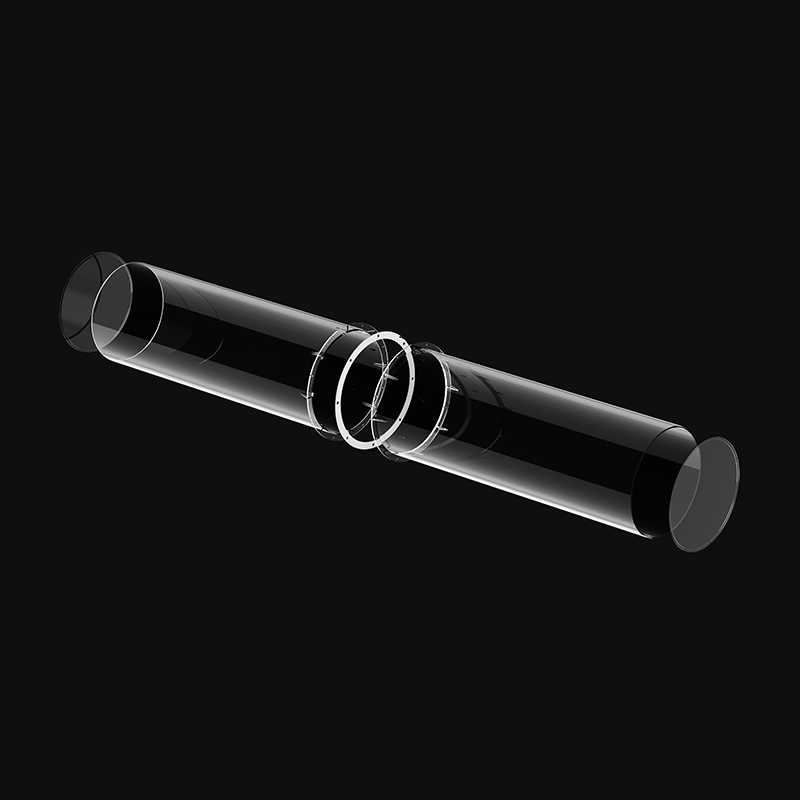

No.	Specifications		Flange specifcations	Cover plate size	Bottom plate size	Sealing gasket size/material		Screws
1	Ø80x2x2000MM	Ø80x2x2500MM	140*8MM	82*8MM	82*10MM	141x1mm	silica gel	M8*28 PA6
2	Ø90x2.5 x2000MM	Ø90x2.5 x2500MM	150*8MM	92*8MM	92*10MM	150x1mm	silica gel	M8*28 PA6
3	Ø120x3x2000MM	Ø120x3x2500MM	180*8MM	122*8MM	122*10MM	180x1mm	silica gel	M8*28 PA6
4	Ø150x3x2000MM	Ø150x3x2500MM	200*10MM	152*8MM	152*10MM	200x1mm	silica gel	M8*28 PA6
5	Ø200x3x1500MM	Ø200x3x2000MM	250*10MM	202*8MM	202*10MM	250x1mm	silica gel	M8*28 PA6
6	Ø250x3x1500MM	Ø250x3x2000MM	300*10MM	252*8MM	252*10MM	300x1mm	silica gel	M8*28 PA6
7	Ø350x4x1500MM	Ø350x4x2000MM	400*10MM	352*8MM	352*10MM	400x1mm	silica gel	M8*28 PA6
8	Ø400x5x1500MM	Ø400x5x2000MM	450*10MM	402*8MM	402*10MM	450x1mm	silica gel	M8*28 PA6
9	Ø500x5x1500MM	Ø500x5x2000MM	550*10MM	505*8MM	505*10MM	550x1mm	silica gel	M8*28 PA6
All specifications of flanges can be equipped with milky white silicone sealing gaskets,customizable in any color
