PC T8 tube Housing
As a one-stop manufacturer of LED PC tube housing supplier in China 20 plastic extrusion machines and 5 aluminum extrusion machines,our products are exported to all over the world, providing our customers with professional LED tube housing solutions. LED T8 plastic housing PC outer tube and inner aluminum can emit light up to 240 degrees.
- Product description
- Specifications
- Application
- Related Products
Product Description:
The shell of LED T8 Plastic Housing PC Outer Tube and Inner Aluminum is pure PC (polycarbonate), is very popular with many LED tube manufacturers, the thickness of the diffuser cover can be between 0.6mm - 2.0mm,and there are many advantages:
1. High light transmittance: the transparency of the pure milky white cover can reach more than 85%, and the pure transparent cover can reach more than 95%.
2. High cold resistance: low temperature resistance -30 ℃, high temperature resistance 80-120 ℃.
3. Good flexibility: strong impact resistance, not easy to deform.
4. Perfect appearance: The product has high finish, no black spots, no stretch marks, no water waves, and the pass rate is over 95%.
| Product Name | PC LED Tube housing | Round led T8 tube housing |
| Model No. | LEZPC-8472 | LEZPC-8250 |
| Drawing |  |
 |

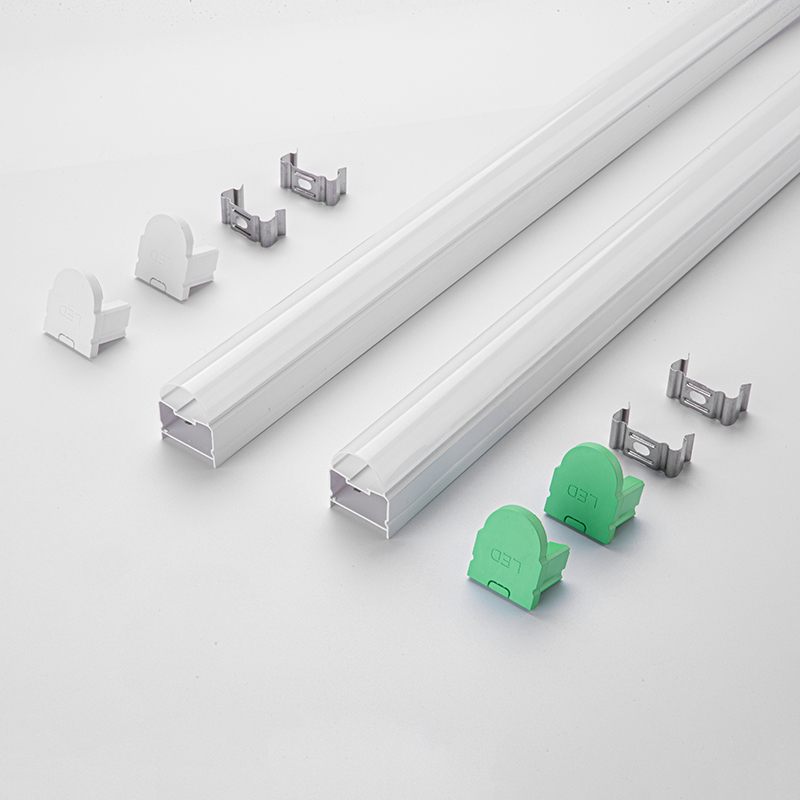

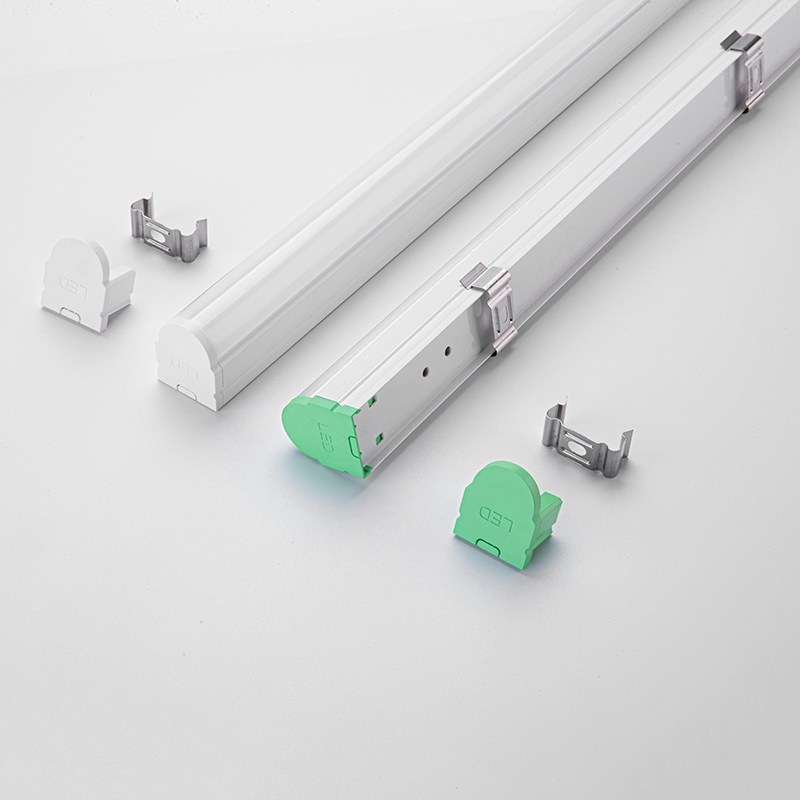

| Components | Full pc diffuser tubes+Two end caps | Diffuser tube+Aluminum heatsink+Two end caps |
| PCB board size | 10*1mm | 12*1mm |
| Length | 600mm, 900mm, 1200mm, 1500mm | |
| Materials | Full polycarbonate | Full pc+inner aluminum |
| Diffuser color | Frosted or clear (transparent),co-extrusion | |
| Driver options | Internal | Internal |
| Delivery Time: | 7 days for mass production | 7 days for mass production |
| Package: | Standard carton or with pallet | |
| Sample Test | Q: Can I have a trial sample order?A: Yes, 1~2pcs | |

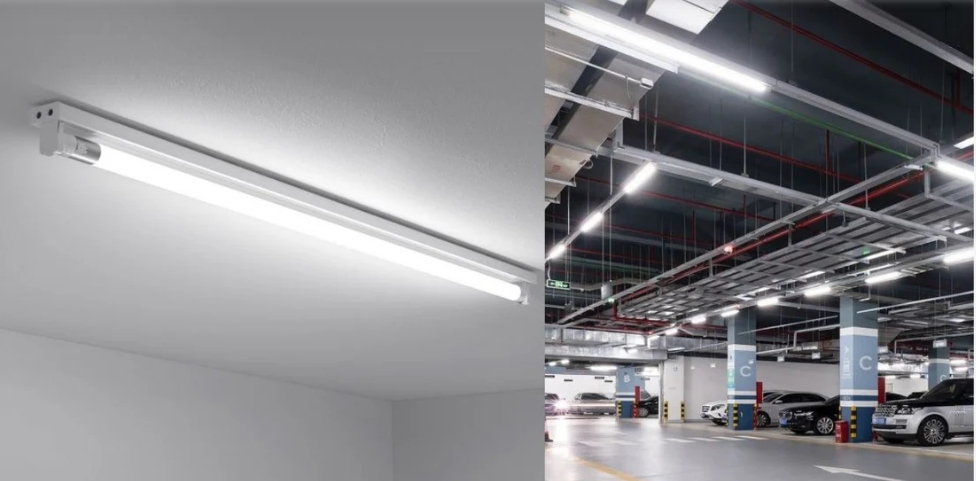

Product Feature And Application
Low power consumption; durable; using amorphous, odorless, non-toxic, highly transparent PC thermoplastic engineering plastics and good heatsink aluminum, which have excellent physical and mechanical properties, and can be used for a long time at low temperatures
