LED Tube Housing
LEZ is mainly engaged in the production and manufacture of LED tube housings,T5/T8 full pc/aluminum tube housing which are well-known in the domestic and overseas markets.
- Product description
- Specifications
- Application
- Related Products
Product Description
Key Features:
1, Suitable for heat dissipation
2, The surface is oxidized, the smoothness is high
3, Aluminum tube without black, no water marks
4, High beam angle for led tube lighting
The high-transparent PC cover has the following advantages:
1. The transmittance of the transparent cover can reach 95%
2, high quality PC material, no yellow, corrosion resistant
3, surface into the peritoneal treatment, not shaving.
| Product Name | T8 LED Tube housing | Integrated tube light accessories |
| Model No. | LEZ-8-MEK | LEZ-8-FC |

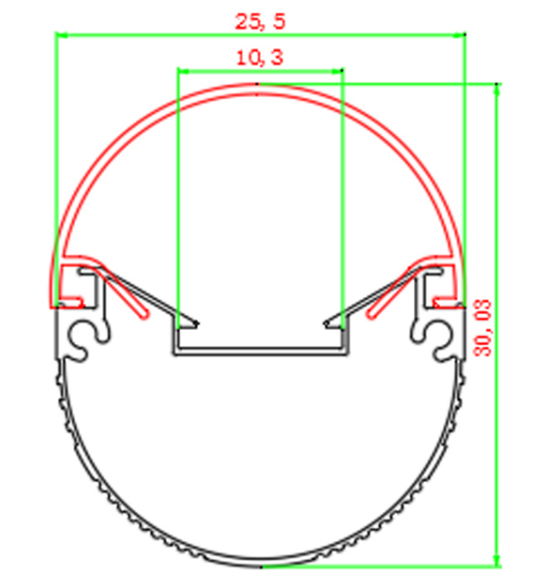

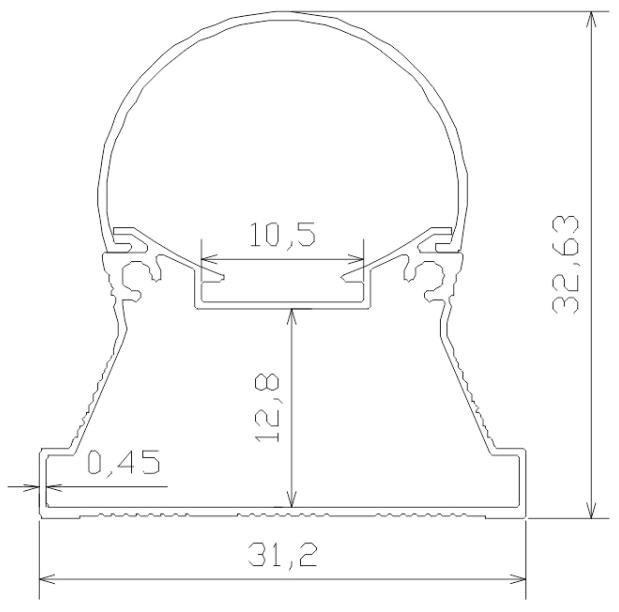

| Drawing |  |
 |
| Components | Diffuser cover+Aluminum heatsink+Two end caps | Diffuser cover+Aluminum heatsink+Two end caps+Connector+plugs |
| PCB board size | 10*1mm | 10*1mm |
| Length | 600mm, 900mm, 1200mm, 1500mm | |
| Materials | Half PC+Half Aluminum | Half PC+Half Aluminum |
| Diffuser color | Frosted and clear (transparent) | |
| Driver options | Internal | Internal |
| Delivery Time: | 7 days for mass production | 7 days for mass production |
| Package: | Standard carton or with pallet | |
| Sample Test | Q: Can I have a trial sample order?A: Yes, 1~2pcs | |

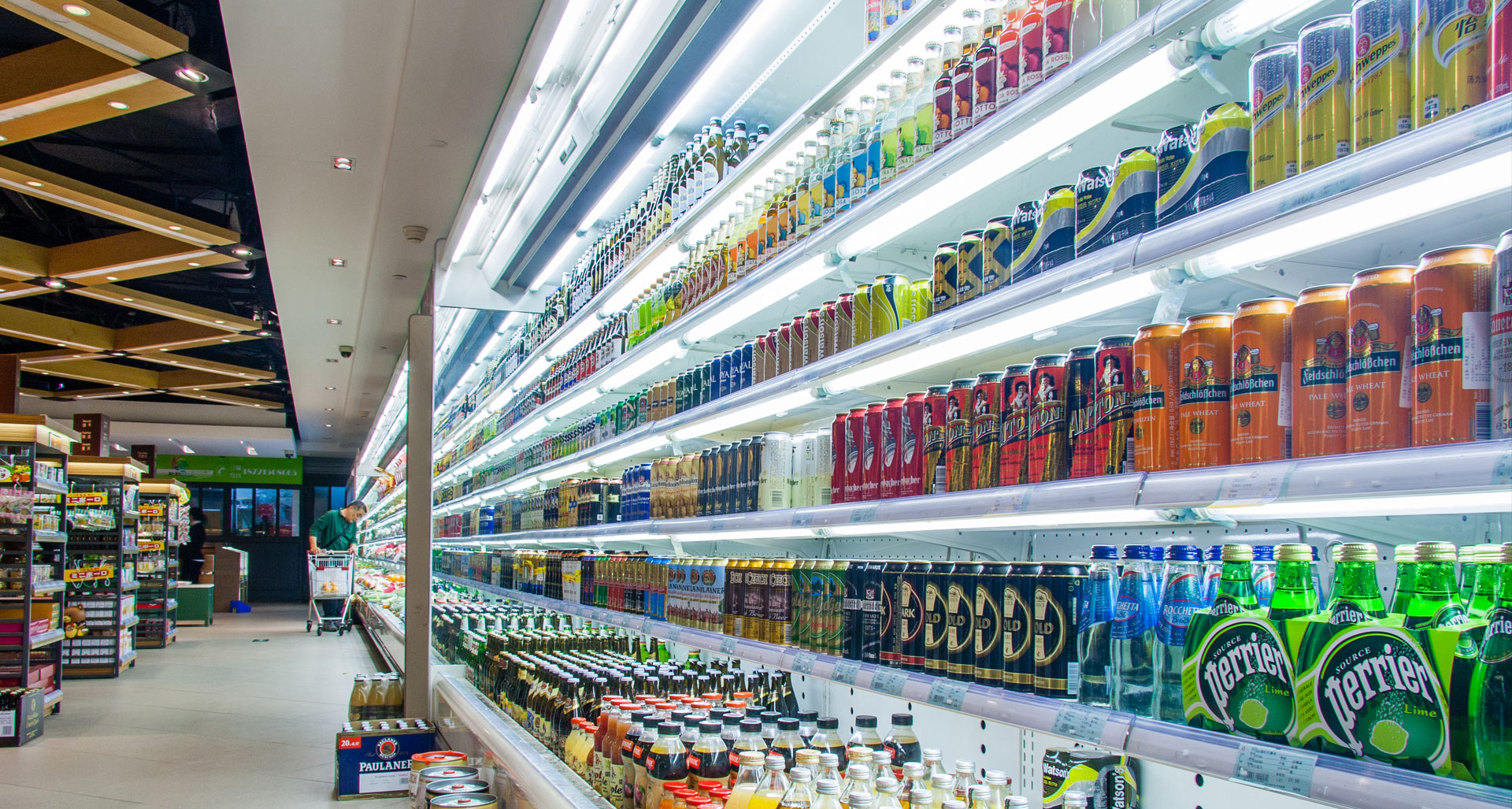

Product Feature And Application
High power consumption; durable; using amorphous, odorless, non-toxic, highly transparent PC thermoplastic engineering plastics and good heatsink aluminum, which have excellent physical and mechanical properties, and can be used for a long time at low temperatures
